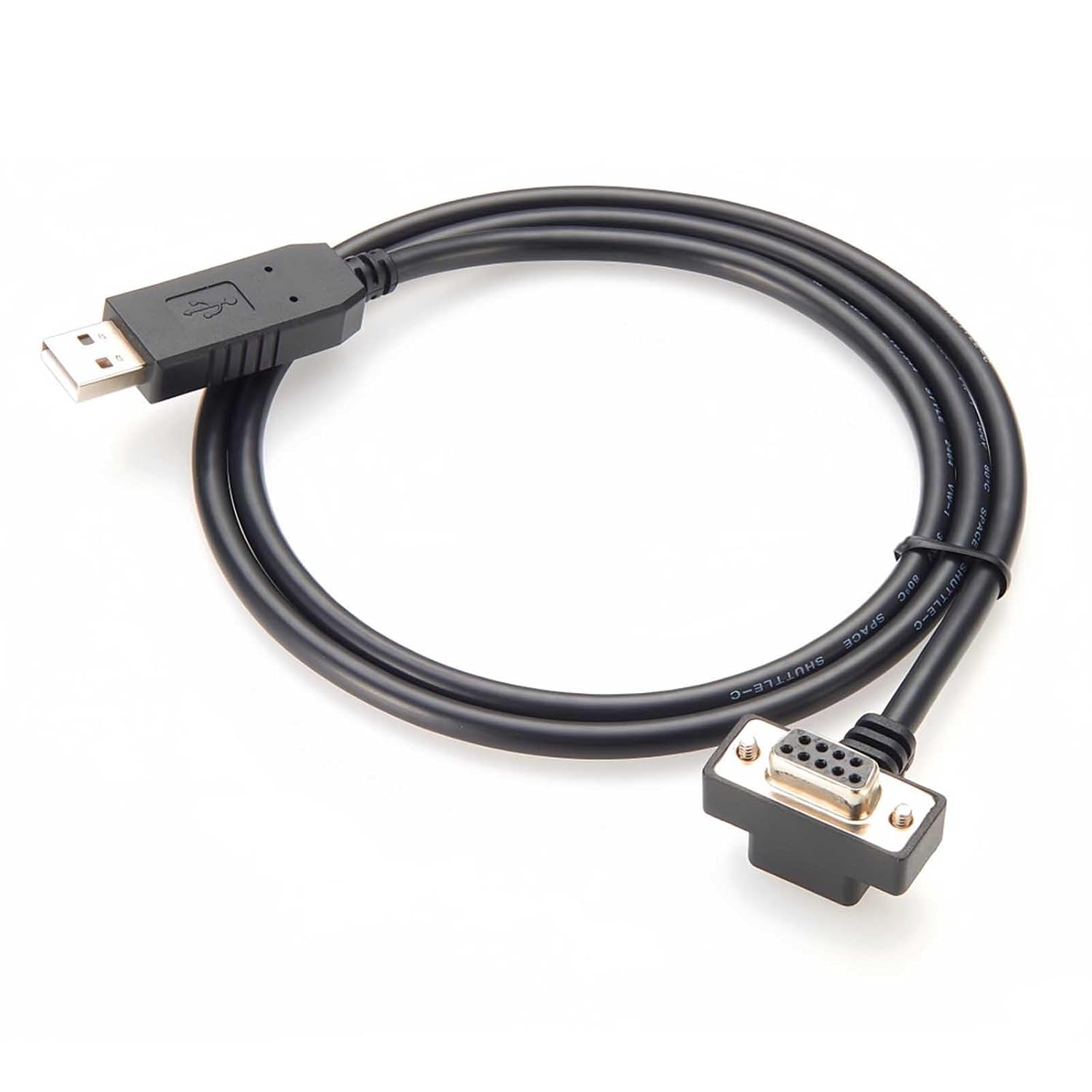

9 Pin Female DB9 to USB 2.0 A Right Angle Connector 1M

Applications: Designed for connecting Serial devices such as DB9-equipped PCs, routers, GPS, Programming machines, barcode scanners, label writers, serial modems, digital cameras, card readers, palm PCs, digital organizers, etc Controlling keypads, cameras, touch screens, and printers in ATMs Directing security cameras in an office or warehouse Running cash registers, receipt printers, and credit card machines in a store or restaurant Electrical Characteristics Rated Current:1Amp Contact resisting:15mΩ Max Insulator resisting:1000mΩ Min @DC 500V Operating Temperature:-40°C to +105°C Mechanical Characteristics Single Contact Insertion Force 1.19 lb. (0.54 kg.) max. Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min. Environmental Characteristics Operating Temperature:-40°C to +105°C

• D-sub Cable, USB 2.0 to RS232 DB9 Serial Cable, USB to Serial RS232 DB9 Adapter Cable
• Industry-standard interfacing RS232 and RS485 mating configurations per EIA standards;
• Inserts are flame-retardant thermoplastic;
• USB to serial female adapter cable allows any PC to connect serial devices and programs that communicate through COM ports
• From the OEM Original Factory, the same quality with a much better price.
